Factory gate - draft 001 &002

admin | 06.03.2026

Previous model Next model

3D Preview

Loading 3D model...

LMB: Rotate | Scroll: Zoom | RMB: Pan

Gallery (33)

3D модель Factory gate - draft 001 &002 - фото 1

3D модель Factory gate - draft 001 &002 - фото 2

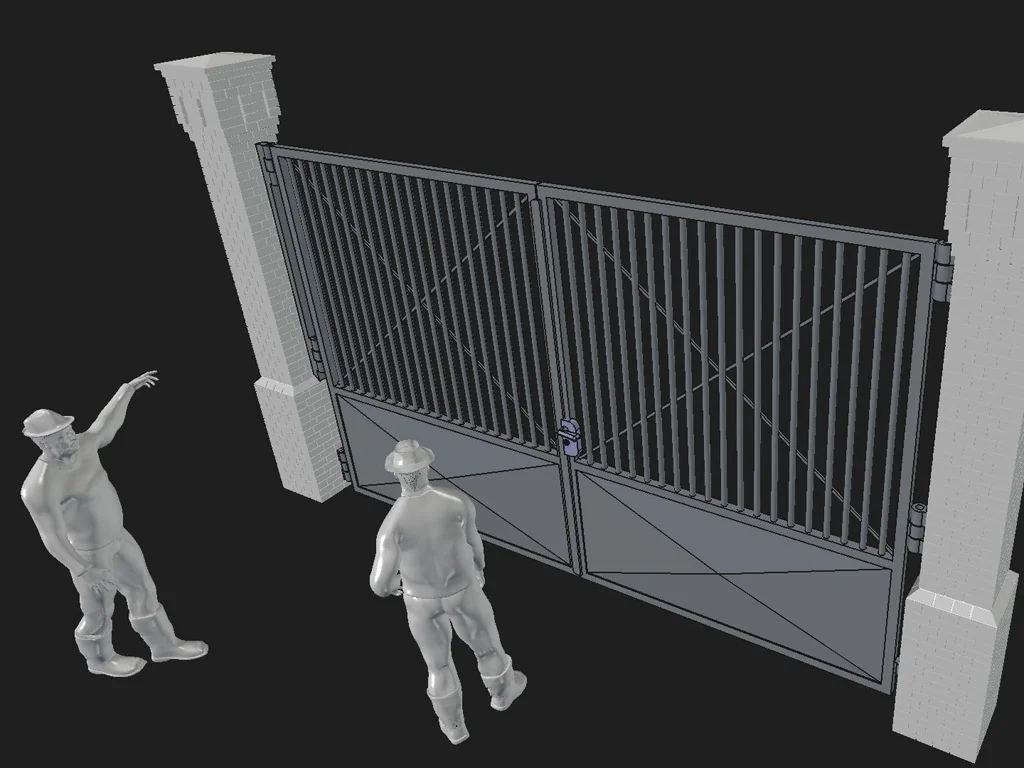

3D модель Factory gate - draft 001 &002 - фото 3

3D модель Factory gate - draft 001 &002 - фото 4

3D модель Factory gate - draft 001 &002 - фото 5

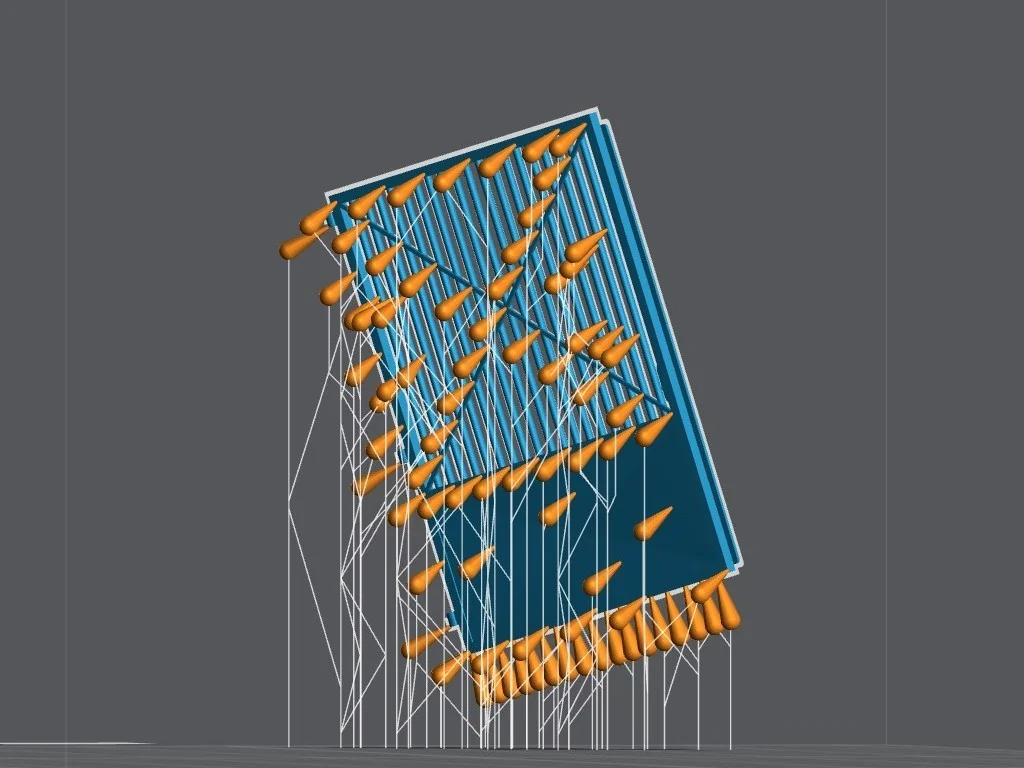

3D модель Factory gate - draft 001 &002 - фото 6

3D модель Factory gate - draft 001 &002 - фото 7

3D модель Factory gate - draft 001 &002 - фото 8

3D модель Factory gate - draft 001 &002 - фото 9

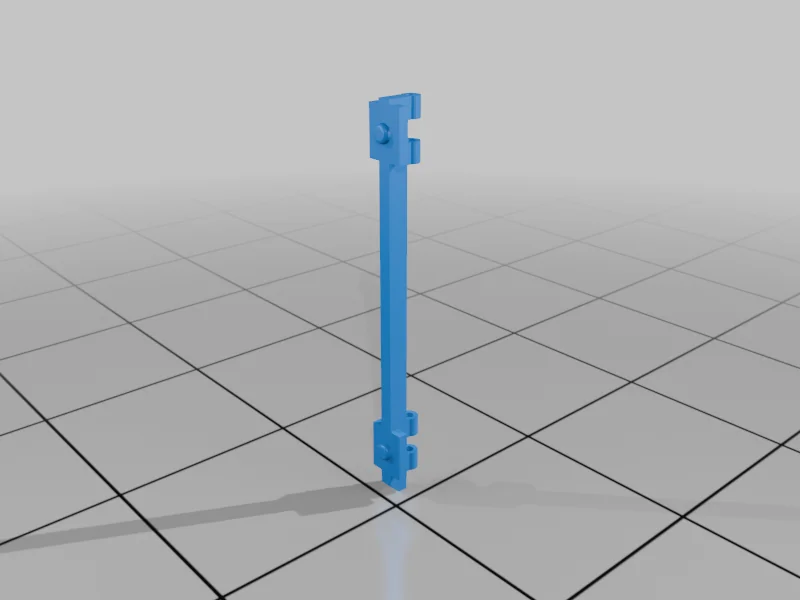

3D модель Factory gate - draft 001 &002 - фото 10

3D модель Factory gate - draft 001 &002 - фото 11

3D модель Factory gate - draft 001 &002 - фото 12

3D модель Factory gate - draft 001 &002 - фото 13

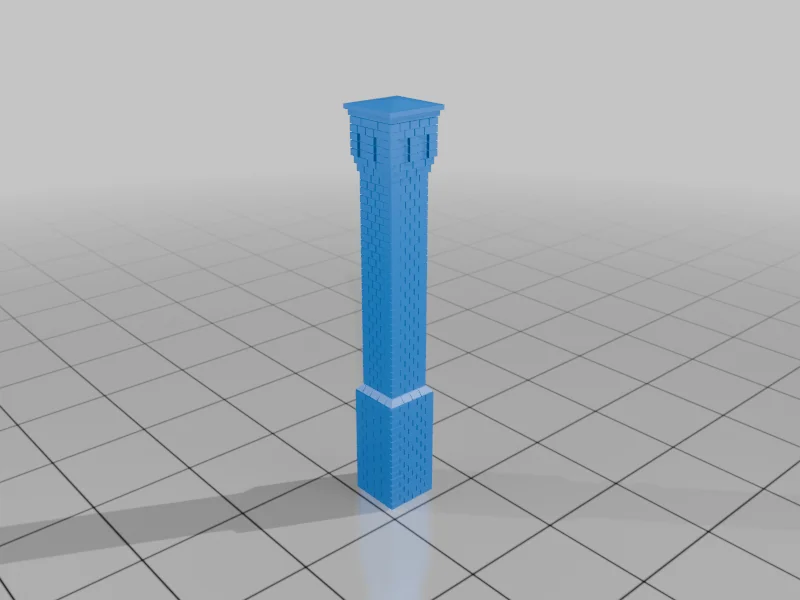

3D модель Factory gate - draft 001 &002 - фото 14

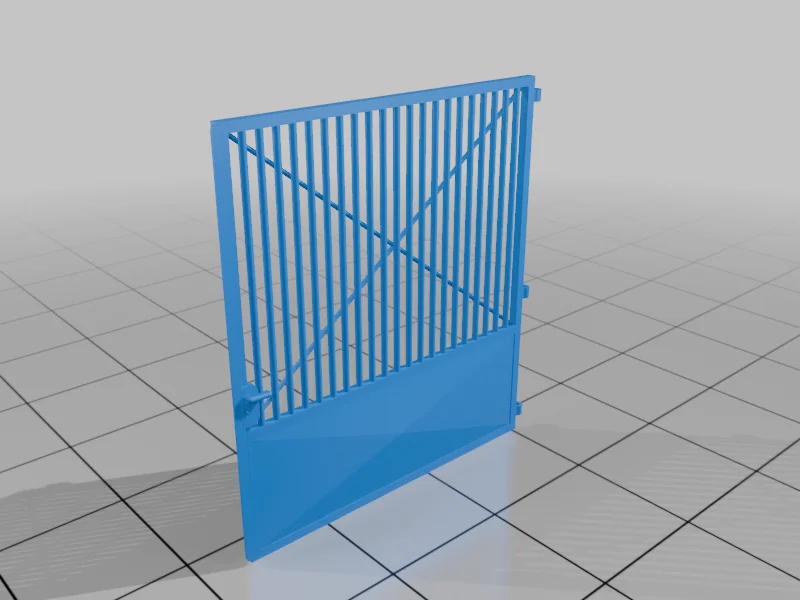

3D модель Factory gate - draft 001 &002 - фото 15

3D модель Factory gate - draft 001 &002 - фото 16

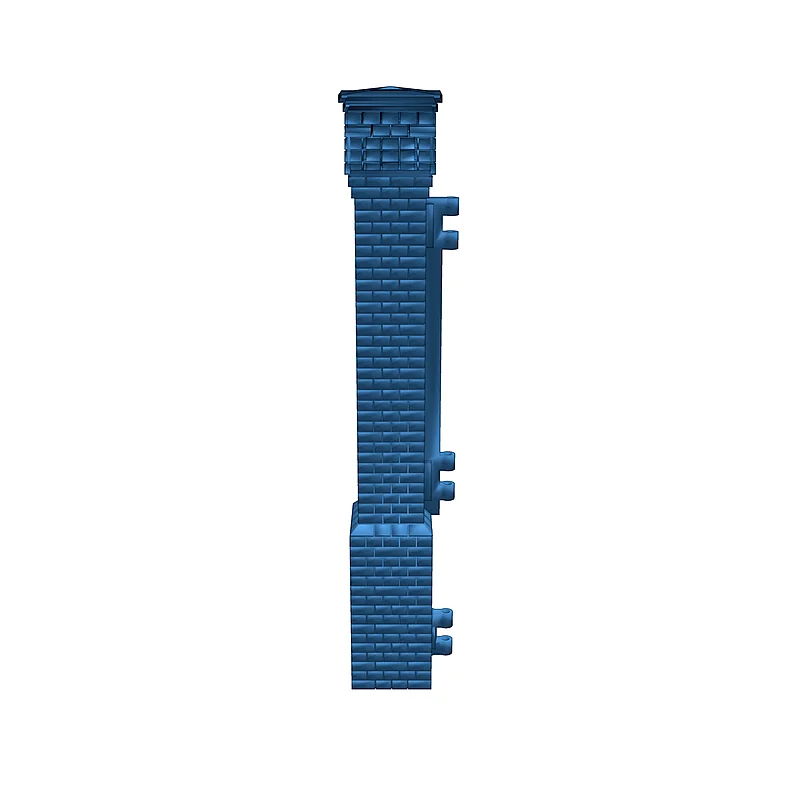

3D модель Factory gate - draft 001 &002 - фото 17

3D модель Factory gate - draft 001 &002 - фото 18

3D модель Factory gate - draft 001 &002 - фото 19

3D модель Factory gate - draft 001 &002 - фото 20

3D модель Factory gate - draft 001 &002 - фото 21

3D модель Factory gate - draft 001 &002 - фото 22

3D модель Factory gate - draft 001 &002 - фото 23

3D модель Factory gate - draft 001 &002 - фото 24

3D модель Factory gate - draft 001 &002 - фото 25

3D модель Factory gate - draft 001 &002 - фото 26

3D модель Factory gate - draft 001 &002 - фото 27

3D модель Factory gate - draft 001 &002 - фото 28

3D модель Factory gate - draft 001 &002 - фото 29

3D модель Factory gate - draft 001 &002 - фото 30

3D модель Factory gate - draft 001 &002 - фото 31

3D модель Factory gate - draft 001 &002 - фото 32

3D модель Factory gate - draft 001 &002 - фото 33

(0) 12 39

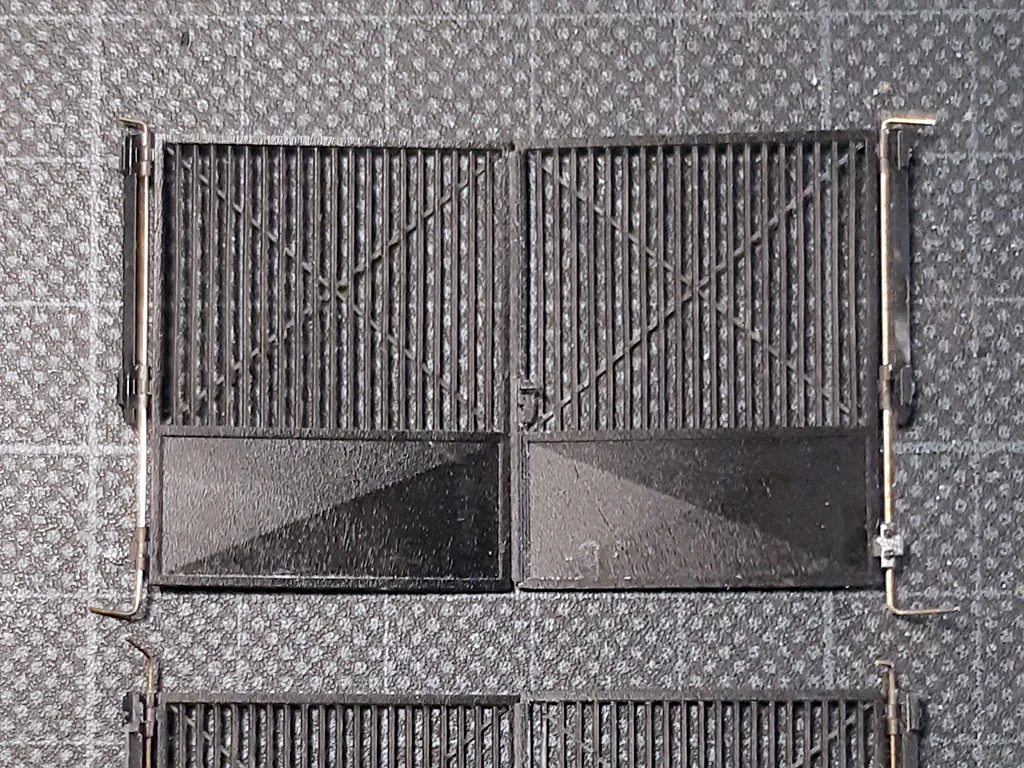

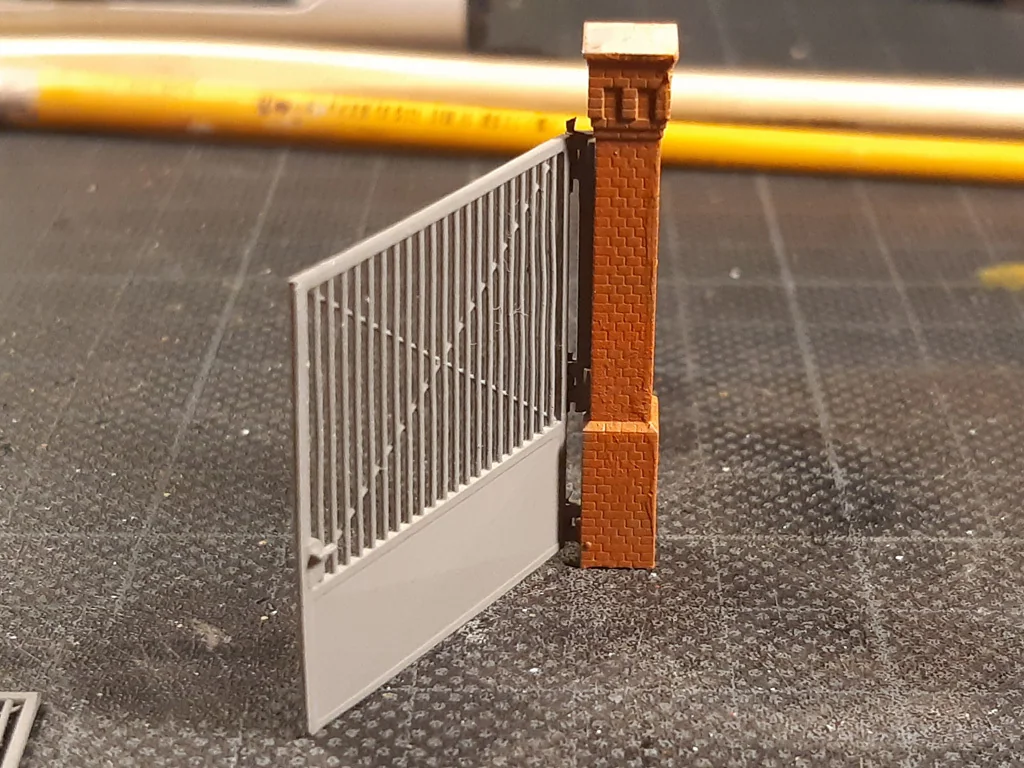

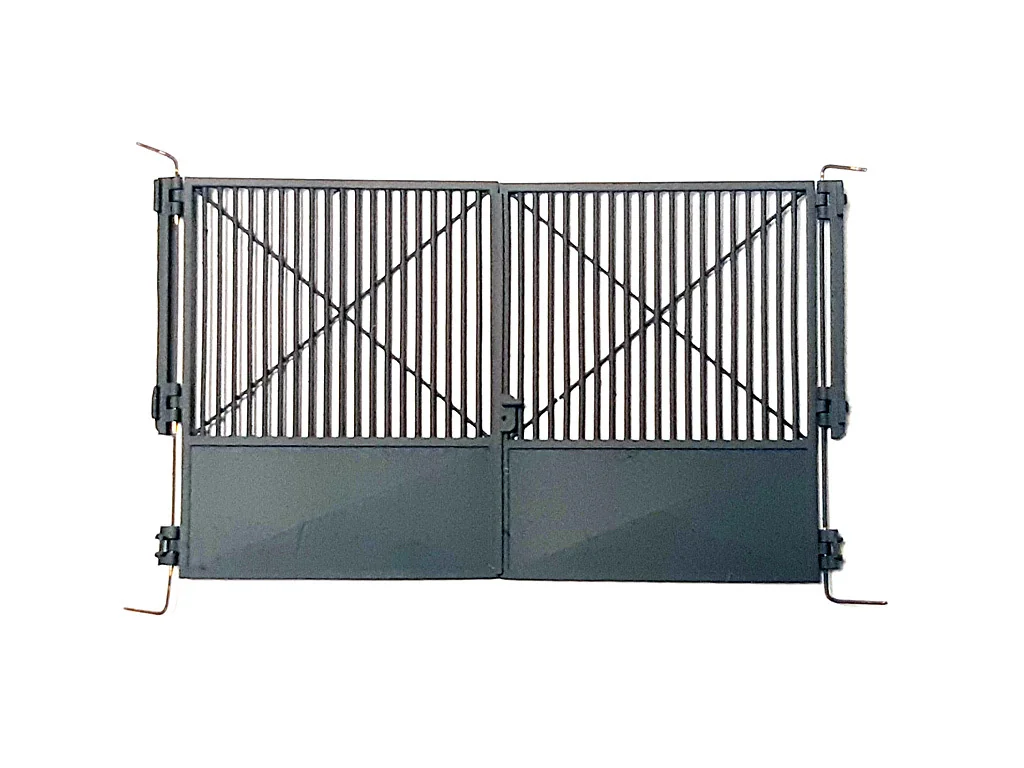

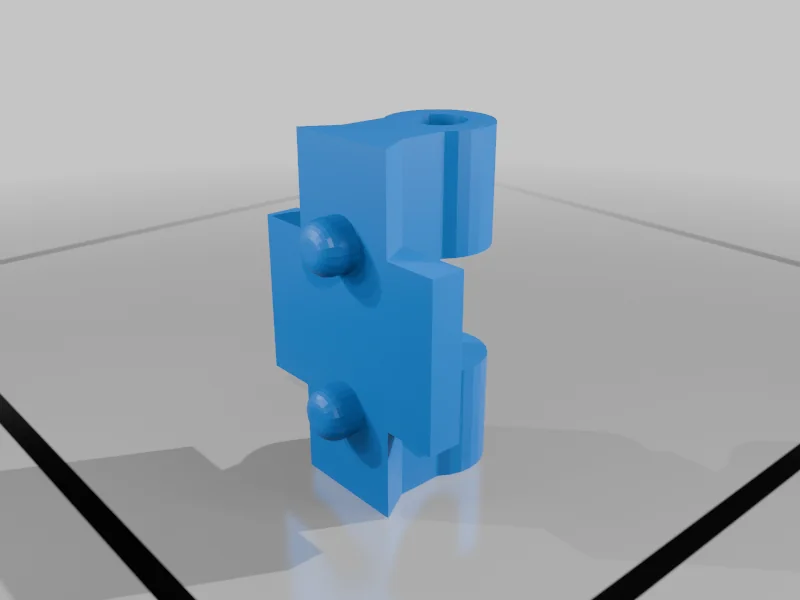

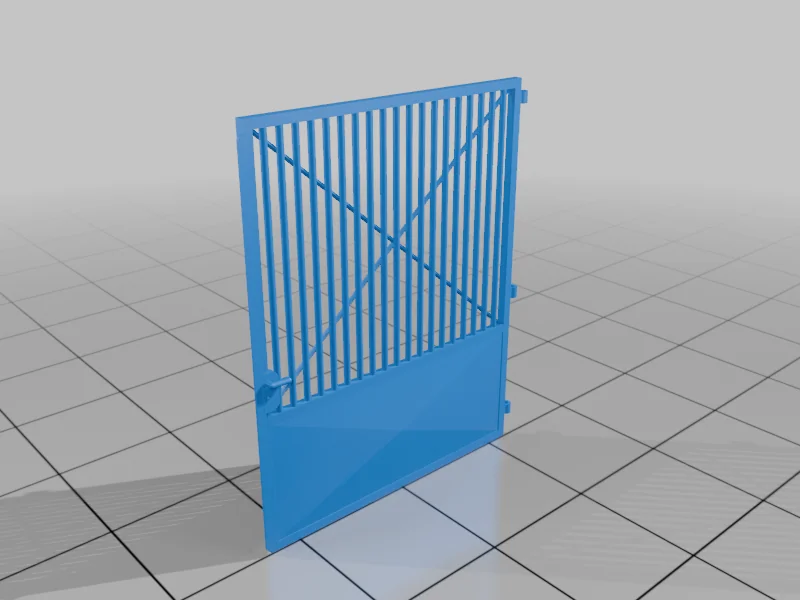

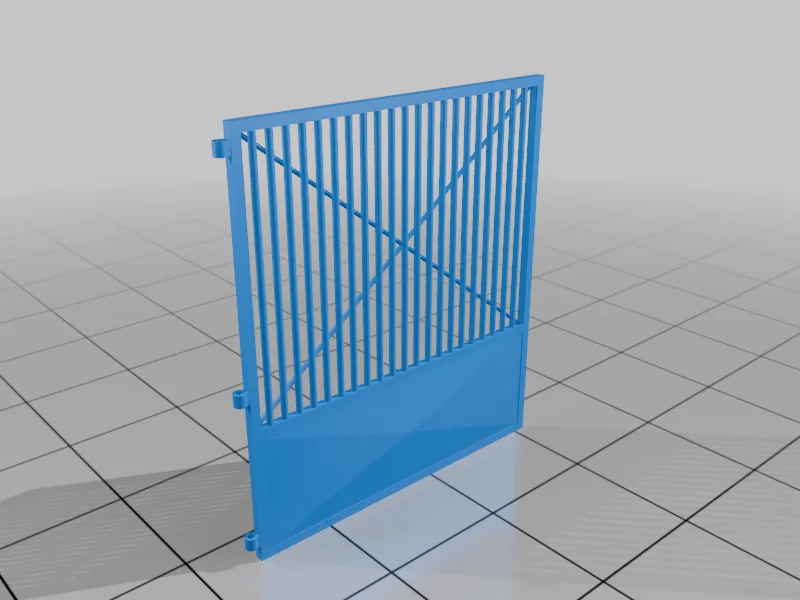

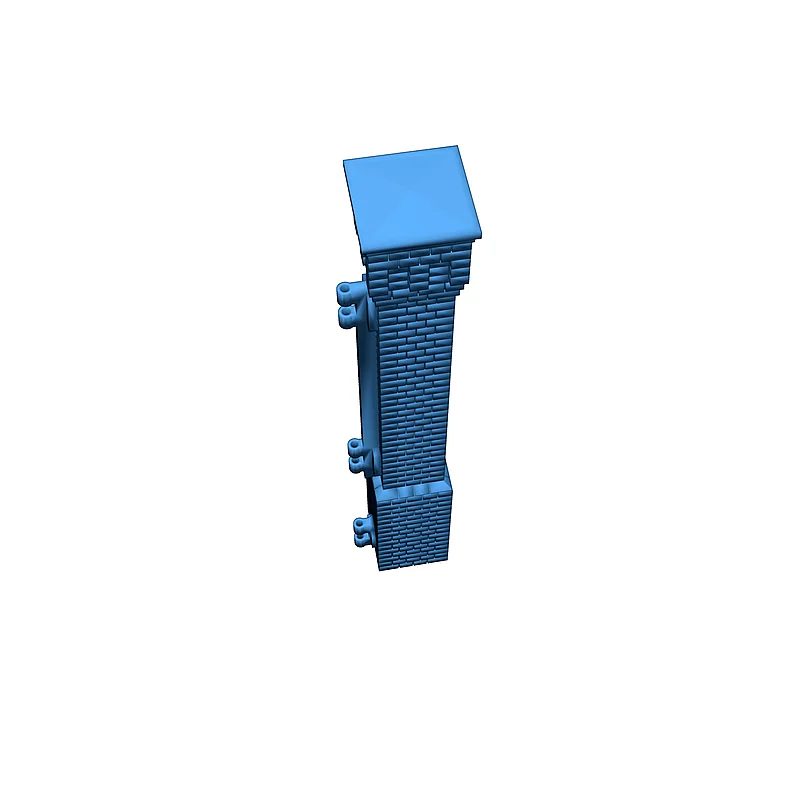

I changed to #inprogress because I add(ed) more stuff and variants. I had to design a factory gate for a H0e layout matching my TT (1/120) scale printed walls. So this design is in 1/120 scale. First try was 52mm wide, 32mm high. Second variant of draft 001 -- because of my mistake -- is 57mm wide. To allow the position of the columns a little deeper / street or track higher, the draft 002 has o.8mm space to the zero level of the column. I printed it on an Anycubic Mono 4 Ultra. I drilled the 0.45mm holes with 0.5mm and added a 0.4mm brass wire to keep the parts connected. Versions Result | Files 52mm wide | draft001 side01 and 02 57mm wide | draft001 side01_57mm and side02_57mm 57mm wide and 0.8mm above the floor | draft002 . All hinges and the column fit draft 001 and 002 files. You have to mirror the column in slicer, it's asymmetric. The column was taken from my design: If you use only the single hinges, it will fit a vertical wall. Настройки печати и инструкции
